- Amps: 4/2
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.84
- Enclosure Material: Steel
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 143TC
- HP: 1-1/2
- Hz: 60
- Insulation Class: F
- Manufacturer Model : 143TTWD16003
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 6.75″
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 11.75″
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 3490
- Service Factor: 1.15
- Shaft Diameter: 7/8″
- Shaft Length: 2.12″
- Volts: 230
- Volts: 460
- Ship Weight: 47 lbs.

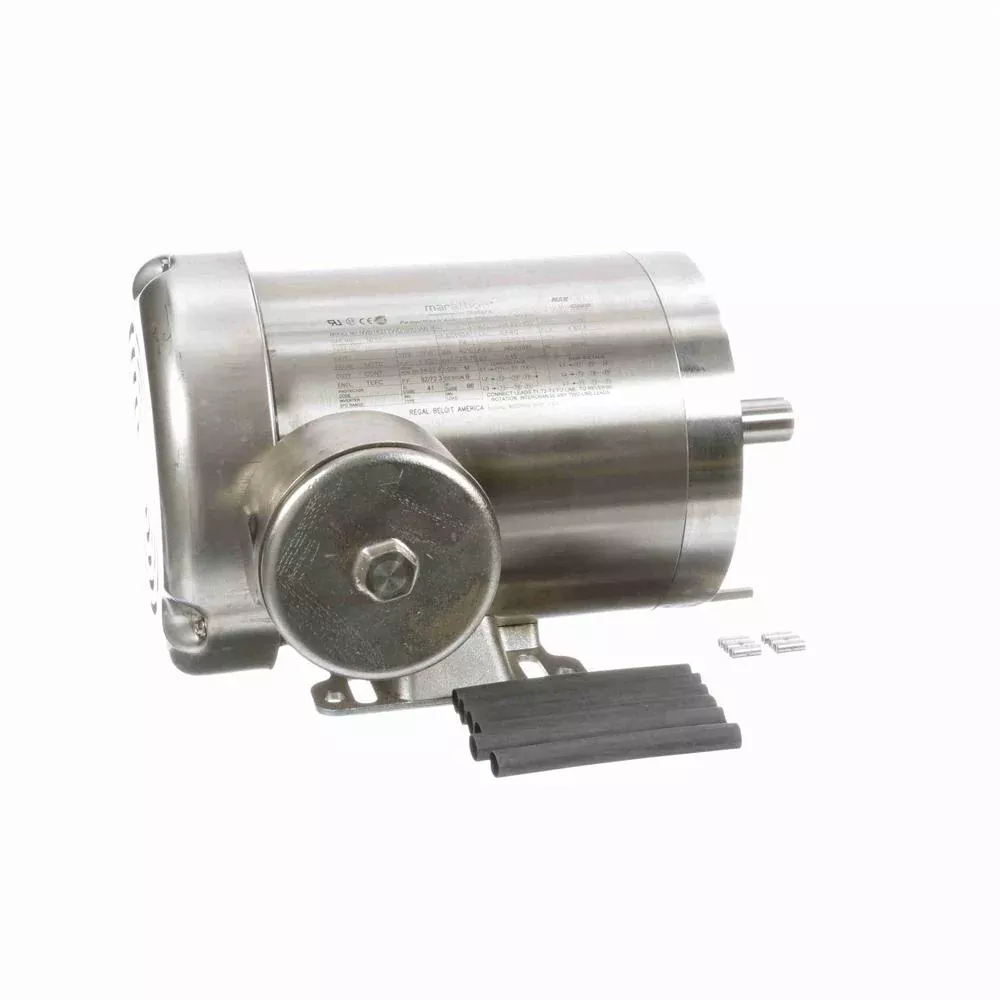

Marathon N763Washdown Duty Motor – N763
Original price was: $373.40.$237.41Current price is: $237.41.
