- Amps: 77/38.5
- Bearings: Ball
- Duty Cycle: Continuous
- Efficiency: 0.93
- Enclosure Material: Iron
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frame: 286T
- HP: 30
- Hz: 60
- Insulation Class: H
- Manufacturer Model : 286THFNA8028
- Maximum Ambient Temperature: 40° C
- Motor Shell Length: 14.25″
- Mounting Orientation: Horizontal
- Mounting: Base
- Number of Speeds: 1
- Overall Length: 29.91″
- Phase: 3
- Product Type: Three Phase
- Rotation: Reversible
- RPM: 1775
- Service Factor: 1
- Shaft Diameter: 1-7/8″
- Shaft Length: 4.81″
- Volts: 230
- Volts: 460
- Ship Weight: 371 lbs.

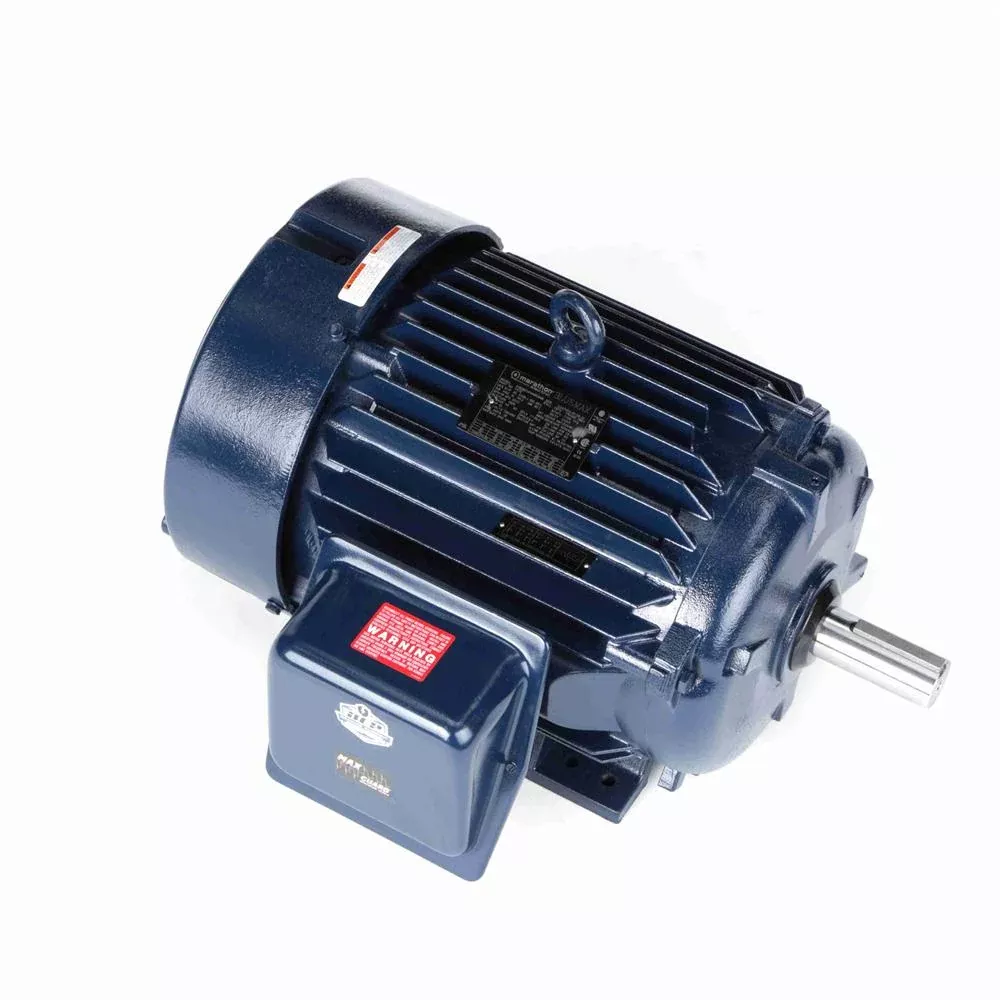

Marathon Y570Inverter Duty Motor – Y570
Original price was: $2,727.37.$2,048.26Current price is: $2,048.26.
