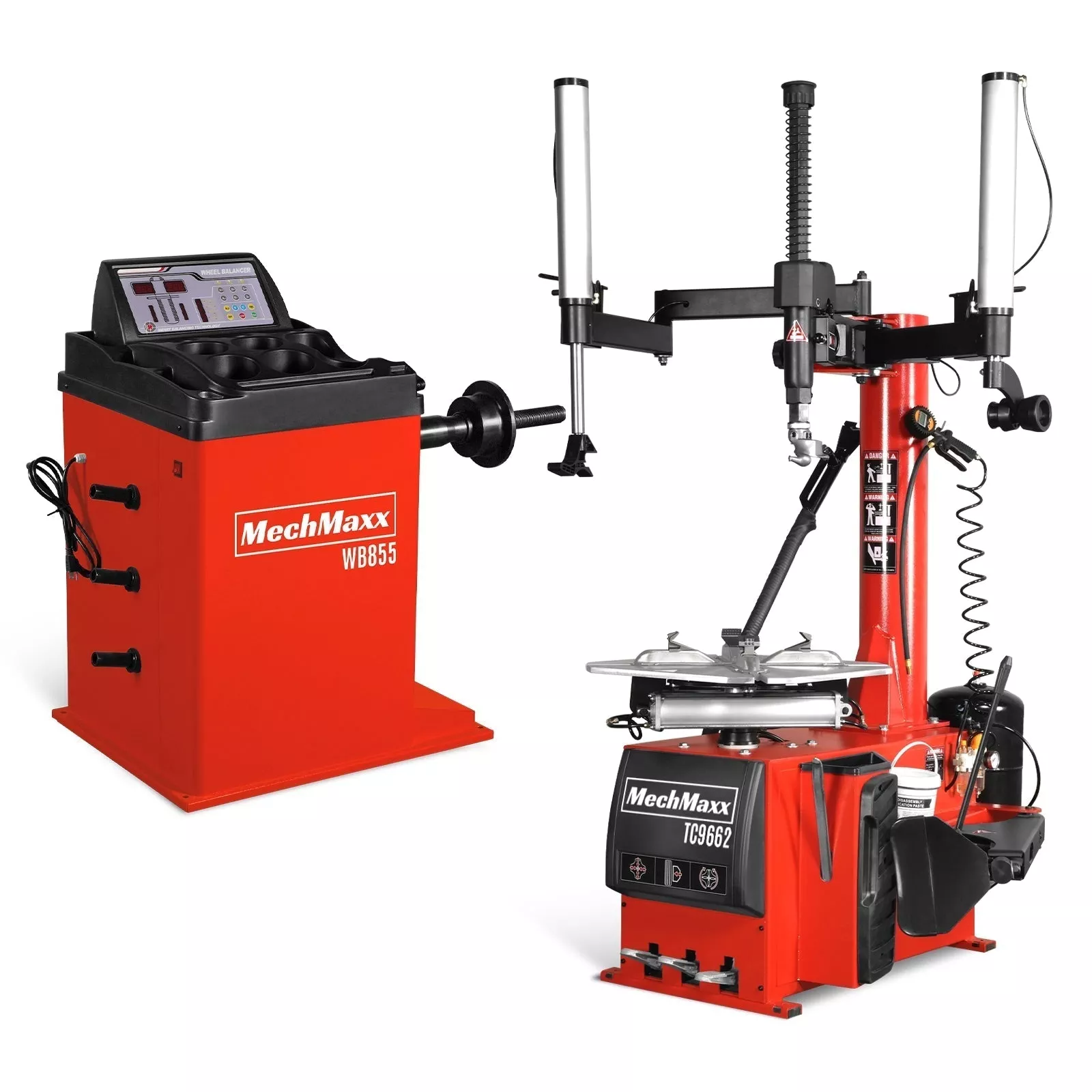

The MechMaxx TC9662 + WB855 combo is a complete tire service station built for high-volume shops that need maximum efficiency. The TC9662 24-inch swing arm tire changer comes with double assist arms the fastest, most controlled setup in the swing arm lineup paired with the WB855 wheel balancer for a full mount-to-balance workflow on passenger cars, light trucks, and SUVs.
The TC9662 delivers 5,510 lbs of bead breaking force with a pneumatic hex shaft lock and stainless steel and plastic mount head. The WB855 balances wheels from 10 to 24 inches with 1 gram accuracy at 200 RPM. Both run on standard 110V single-phase power.
Key Features
- Double assist arms control both sides of the tire for faster, more efficient service
- 24 inside rim capacity passenger cars, light trucks, and SUVs
- 5,510 lb bead breaking force
- Pneumatic hex shaft lock fast, secure table locking during operation
- Stainless steel and plastic mount head protects rims during service
- Hand-held bead blaster included
- WB855 wheel balancer with 1 gram accuracy at 200 RPM
- 110V / 60Hz / 1-phase power for both machines
TC9662 Tire Changer Specifications
| Specifications | Details |
|---|---|
| Voltage | 110v / 60Hz / 1 phase |
| Motor Power | 1.5 HP |
| Type | Swing Arm |
| Bead Blaster | Hand Held |
| Assist Arm | Double |
| Hex Shaft | Pneumatic Lock |
| Inside Rim Clamp Range | 1224 in |
| Outside Rim Clamp Range | 1022 in |
| Mount Head | Stainless Steel & Plastic |
| Max Tire Diameter | 41 in |
| Rim Width | 315 in |
| Working Pressure | 117145 psi (810 bar) |
| Bead Breaking Force | 5,510 lbs |
| Machine Weight | 514 lbs (net) |
WB855 Wheel Balancer Specifications
| Specifications | Details |
|---|---|
| Voltage | 110v / 60Hz / 1 phase |
| Motor Power | 1/3 HP |
| Shaft Size | 40 mm |
| Rim Diameter | 1024 in |
| Rim Width | 1.520 in |
| Max Tire Diameter | 40 in |
| Max Tire Weight | 154 lbs |
| Balance Accuracy | 1 gram |
| Balancing Speed | 200 RPM |
| Machine Weight | 157 lbs (net) |
