Dr.ZX Hitachi Excavator Diagnostic Tool is the pc version Excavator Diagnostic Tool for Dr.ZX Hitachi,For Dr.ZX Hitachi Excavator Diagnostic Tool pc version comes with software 3.10. Dr.ZX Hitachi Excavator Diagnostic Tool has Monitoring System and self-diagnosis system.
Dr.ZX Hitachi Excavator Truck Diagnostic Tool 3.10 PC Version
It is PC Version
Most of today’s construction & mining equipment have computer-controlled systems to optimize production & engine out-put. This means if failures occur, field technicians have to check not only mechanical/fluid systems, but also electric systems. Downtime for troubleshooting is therefore lengthened. To minimize downtime during troubleshooting, we developed a PDA (Palm OS) based diagnostic system called “Dr.ZX”.
Dr.ZX Hitachi Excavator Diagnostic Software Details:
Software Version: MPDR 3.10
Connection Mode: USB connection
Diagnostic Cable: 3 +4 pins
Operating System: WIN7 and WIN10 can work, it is recommended that WIN10 professional edition 64-bit operating system.
Hitachi ExcavatorDiagnostic Tool Functions:
Monitoring System
This system allows dealers to monitor information about hydraulic pressure, pump displacement, selected mode, etc., that is sent from sensors or switches.
Self-Diagnostic System
This system allows dealers to check failure codes occurring in the electric system. If any error code occurs, Dr.ZX will display the error code, the meaning of the error code and the necessary corrective action
COVERS EX VERSIONS 2, 3, 5 AND ZS SERIES 1 , 3 EXCAVATORS
Supported Models:
Mini Excavator (under 6 ton):
MC (OPT)
ZX-5B(ICF) (OPT)
ECU (with/without MF)
Hydraulic Excavator:
ZX-7
ZX-6 (MC/ECM, DCU)
ZX-5G/6G
ZX-5
ZH-6 (MC/ECM, DCU)
ZH-5
ZX-3G
ZX-6A (6t-7t) (MC, ECU without MF)
ZX-5A (Yanmar) (MC, ECU without MF)
ZX-5G,5A (6t-7t) (MC, ECU without MF)
ZX-3
ZX-1
EX-5
EX-3 or earlier
Large Excavator (40 ton – under 100 ton):
ZX-7
ZX-6 (MC/ECM, DCU)
ZX-5
ZX-3
ZX-1
EX-5
EX-3 or earlier
Mining Excavator (over 100 ton):
EX-1200-7 (MC, DLU3)
EX-1200-6 (MC, DLU3)
EX-7 (BPU, DLU3)
EX-5
EX-1
Wheel Type Hydraulic Excavator:
ZXW-7 (MC, ECU(Deutz))
ZXW-6 (MC, DCU(Isuzu), ECU(Deutz))
ZXW-5
ZXW-3
ZXW-1
EXW-3 or earlier
Wheel Loader:
ZW-7
ZW-6 (MC, DCU(Isuzu), ECU(Deutz))
ZW-5 (MC, ECU(Deutz))
ZW-1
Dump Truck:
Rigid Dump (AC2, AC3, EH-3, EH-5)
Crawler Carrier:
RD
EG-3
EG-1
Road Construction Machine:
CP
ZCP-6 (MC, ECU)
ZCP-5 (MC, ECU)
ZCM-5 (MC, ECU)
ZCS-6 (MC)
Wood/Soil Recycling Machine:
SR-6 (ECM, DCU)
Others:
2G/3G Mobile Terminal
HPRO-100(mini)/QConnect
Rewrite The Controller (CAN)
Rewrite The Controller (ZX-7)
Unit Test of Li-ion Battery
Communication Terminal (KTDC17)
DTU
Software Display:

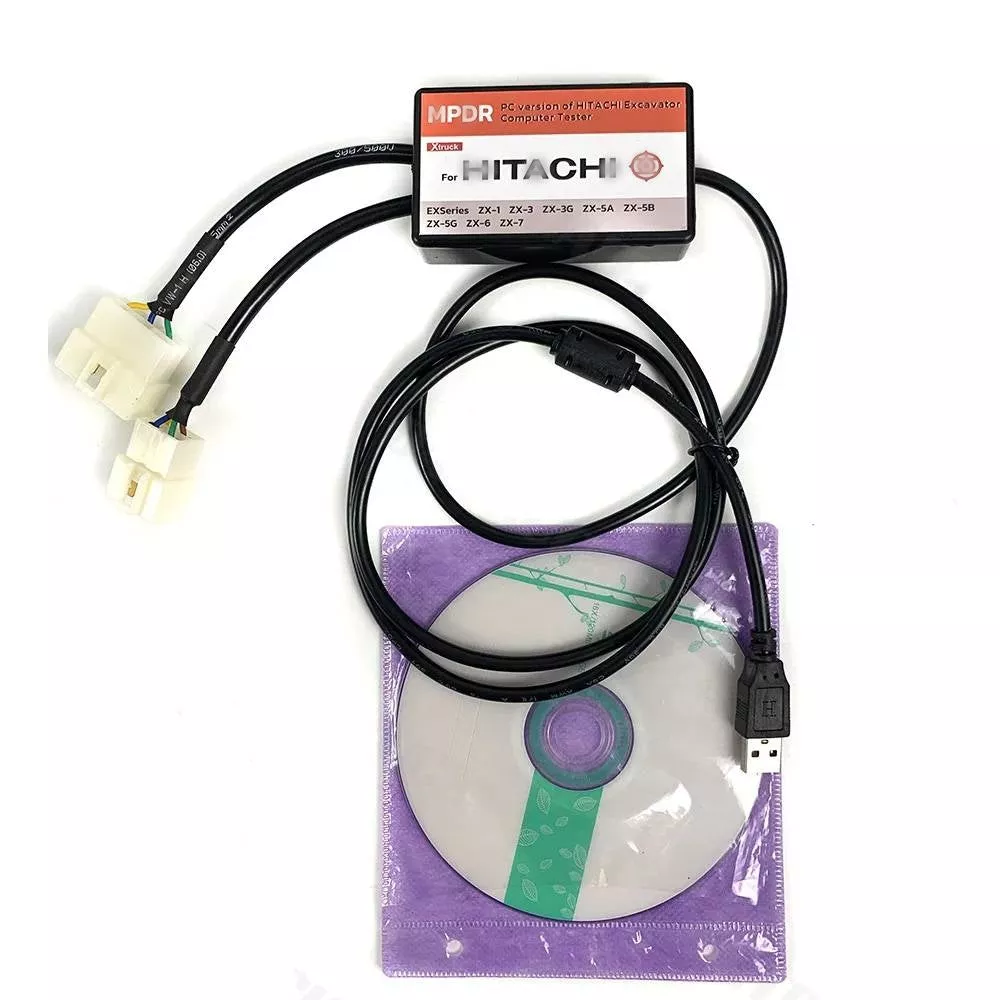

Package List:
1.Dr.ZX diagnostic USB cable (4pin and 6pin cont connectors)
2.Diagnostic software CD V2011
