DESCRIPTION

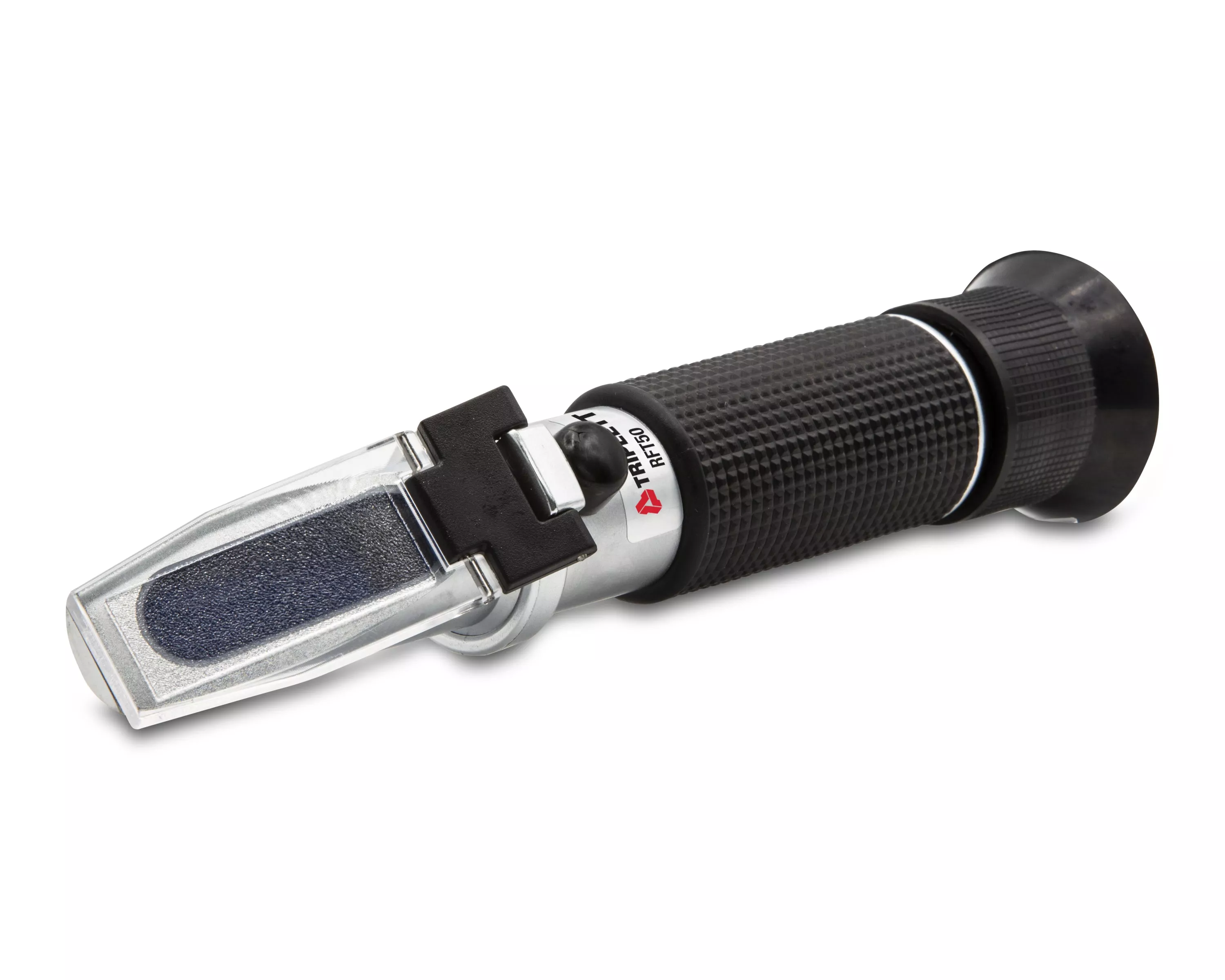

The Triplett RFT50 (C) Portable Portable Battery Coolant/Glycol Refractometer measures the freezing point of Propylene/Ethylene Glycol and Battery Acid specific gravity. It requires only 2 to 3 drops of solution for accurate measurement. ATC automatically compensates for ambient temperature changes from 50 to 86F (10 to 30C). Easy calibration with distilled water. Includes screwdriver, cleaning cloth, pipette, and case.
Features
- Measure the freezing point of Propylene/Ethylene Glycol (C) and Battery Acid specific gravity
- Requires only 2 to 3 drops of solution for accurate measurement
- ATC automatically compensates for ambient temperature changes
- Easy calibration with distilled water
- Includes screwdriver, cleaning cloth, pipette, and case
Specifications
| RFT50 | RFT55 | |
| Propylene Glycol Freeze Point | -50C to 0C | -60F (63%) to 32F (12%) |
| Ethylene Glycol Freeze Point | -50C to 0C | -60F (59%) to 25F (16%) |
| Accuracy | 2% | 2% |
| Resolution | 1C | 2F |
| Battery Acid Specific Gravity | 1.15 to 1.30 | 1.15 to 1.30 |
| Dimensions | 6.7×1.6×1.6″ (170x40x40mm) | 6.7×1.6×1.6″ (170x40x40mm) |
| Weight | 6oz (170g) | 6oz (170g) |
