SKU: R256-170 | UPC: 806990175205

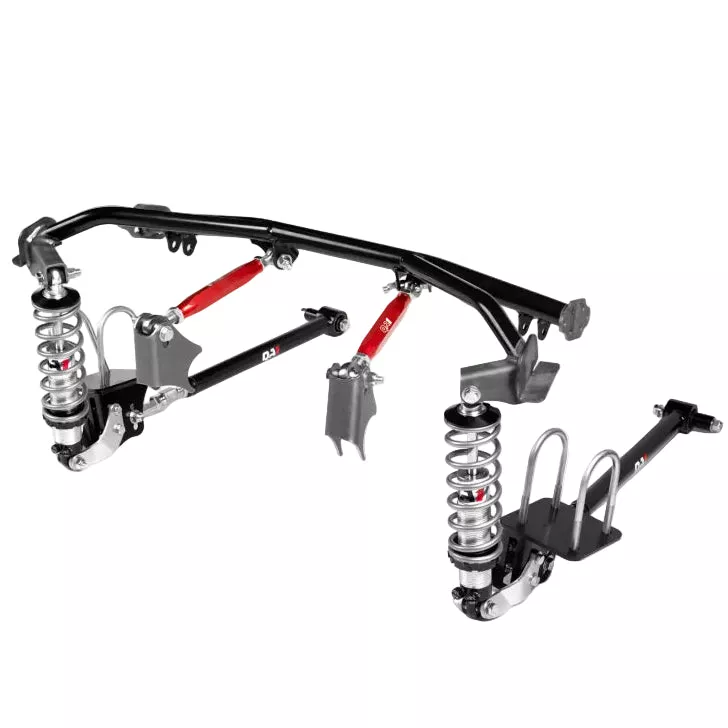

QA1 Double Adjustable Rear Four Link Suspension System 1967-1969 GM F-Body (Camaro / Firebird)
The QA1 Double Adjustable Rear Four Link Suspension System is a complete high-performance upgrade that replaces the factory leaf springs on 1967-1969 GM F-Body vehicles (Camaro and Firebird).
This system includes QA1s renowned double-adjustable coil-over shocks and a tubular triangulated 4-link, giving you full control over ride height, pinion angle, and wheelbase with simple adjustments no link removal required. It dramatically improves ride quality, handling, and traction while allowing significantly wider wheels and tires (up to 11″ on 1967-68 models and 12″ with 335 tires on 1969 models when mini-tubs are used).
The kit delivers superior stability for both street and track use, with independent rebound and compression tuning for precise suspension control. Installation requires minimal welding and no floor pan modifications. QA1s best-in-class Lifetime Warranty (with registration) and USA-made quality ensure long-term reliability and performance.
Key Features
- Double Adjustable Coil-Overs Independent rebound and compression tuning for optimal handling and ride quality
- Tubular Triangulated 4-Link Improves traction, stability, and eliminates leaf spring limitations
- Ride Height Adjustability +2″ to -3″ of adjustment for the perfect stance
- Wider Wheel & Tire Clearance Supports up to 11″ wheels (1967-68) or 12″ with 335 tires (1969) when mini-tubs are used
- Easy Installation Minimal welding required; no floor pan modifications
- Lifetime Warranty Register at QA1.net/warranty for best-in-class coverage on shocks
| Spec | Detail |
|---|---|
| Part Number | R256-170 |
| Brand | QA1 |
| Type | Double Adjustable Rear Four Link Suspension System |
| Compatibility | 1967-1969 GM F-Body (Camaro / Firebird) |
| Country of Origin | United States |
| Warranty | Lifetime Warranty on Shocks (with registration) |
Whats Included
- Pair of Double Adjustable Coil-Over Shocks
- Tubular Triangulated 4-Link Assembly
- All necessary mounting hardware and brackets
- Spanner wrench for ride height adjustment
- Installation instructions
Product Notes
- Designed for 1967-1969 GM F-Body vehicles (Camaro and Firebird)
- Improves handling, traction, and stance while allowing wider wheels and tires
- QA1 Subframe Connectors are strongly recommended for maximum performance
- May require exhaust modification depending on setup
Installation Notes
- Requires some welding for proper installation
- Estimated time: 610 hours
- Professional installation and wheel alignment are highly recommended
This Part Fits
| Year Range | Make | Model | Notes |
|---|---|---|---|
| 1967-1969 | Chevrolet | Camaro | All models |
| 1967-1969 | Pontiac | Firebird | All models |
Why Choose QA1 Rear Four Link Systems?
- Superior handling and ride quality compared to leaf springs
- Full adjustability for perfect stance and performance tuning
- Best-in-class Lifetime Warranty on shocks with registration
- Proudly made in the USA
Frequently Asked Questions
- Q: Does this kit fit my 1968 Chevrolet Camaro?
A: Yes, direct fit for all 1967-1969 GM F-Body vehicles (Camaro and Firebird). - Q: How much ride height adjustment does it provide?
A: +2″ to -3″ of ride height adjustability for the perfect stance. - Q: Is professional installation required?
A: Yes, some welding is required, and proper alignment is essential for safety and performance.
