2-Way Analog Air Ride Suspension Control System for a Controlled, Confirmed Fit
The Ridetech 30142000 is a 2-way analog air ride suspension control system engineered for the application specified in the fitment section below. This is a universal-fit component, so review the compatibility notes before ordering.
Key Features
- Ridetech part number 30142000

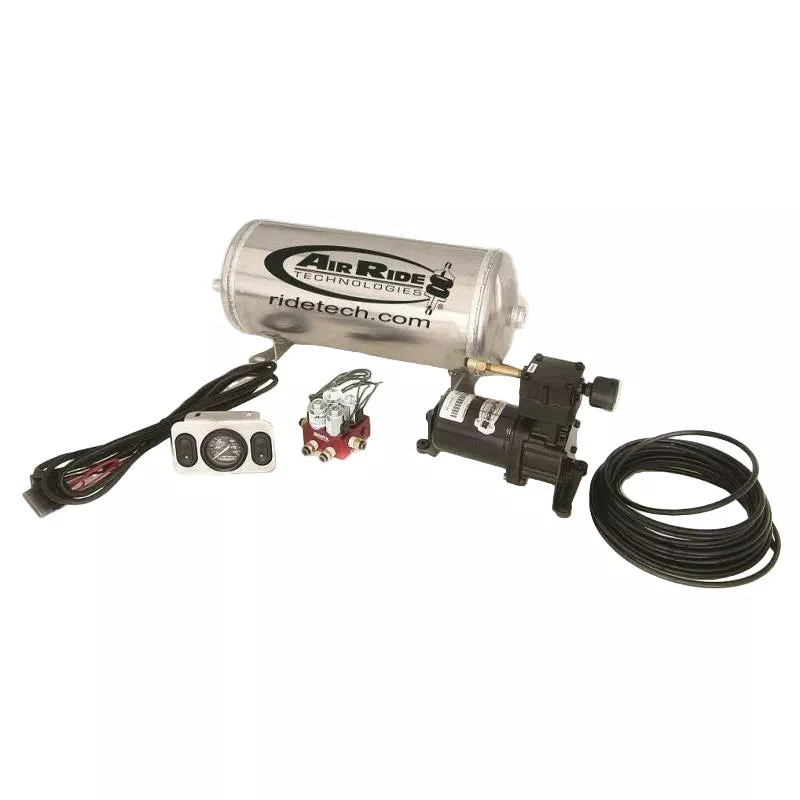

- RidePro 2-way analog air ride control system, 3-gallon tank, single compressor, 1/4″ valves
- For 2-air-spring (single axle) control. 4-spring systems should use a 4-way system (30154000 / 30154100)
Fitment
| Vehicle Application | Position |
|---|---|
| Universal air suspension control system, controls 2 air springs independently | – |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 30142000 |
| Brand | Ridetech |
| Condition | New |
| Shipping Weight | 34 lbs |
| Specification | Thomas 319 compressor, 0.50 CFM @ 150 psi, 19.6 A max |
| Specification | 3-gallon aluminum tank with two 1/4″ ports and one 1/8″ port |
| Specification | 2 inflate + 2 deflate solenoids on one anodized block |
| Specification | Stainless control panel with dual-needle analog gauge |
| Specification | Includes harness, 1/4″ and 1/8″ airline, fittings, check valve, pressure switch, relay |
What’s Included
- 2 RidePro 2-way analog air ride control system, 3-gallon tank, single compressor, 1/4″ valves
About Ridetech
Ridetech engineers air suspension, coilovers, and chassis components in the USA and tests every system on real vehicles before it ships. The lineup covers bolt-on street and pro-touring suspension for classic muscle cars, trucks, and modern performance vehicles.
FAQ
Will this fit my vehicle exactly as listed
Check the fitment table above for the exact years, make, and model this part covers. Some model years use different rotor or trim configurations, so confirm your specific submodel before ordering if one is noted.
What is included in the box
This listing includes the component itself. Mounting hardware is included only when stated in the specifications table above.
Do I need any special tools to install this
Basic hand tools are typically sufficient for installation. A torque wrench is recommended to bring fasteners to the manufacturer’s specified torque.
Is this a direct replacement for the factory part
Yes, this part is designed as a direct fit replacement for the listed applications using the factory mounting points, so no vehicle modification is required.
What is the expected break-in or service period
Standard break-in and service intervals apply. Follow the installation instructions below for the recommended break-in procedure to reach full performance.
Can I install this myself or do I need a professional
Many owners install this part themselves with common tools and a lift or jack stands. If you are not comfortable with brake or suspension work, a certified technician is recommended.
Does this come with a warranty
This part is covered by the manufacturer’s standard warranty against defects in materials and workmanship. Retain your receipt as proof of purchase.
Will this work with my aftermarket wheels
Most stock-diameter aftermarket wheels clear this part without issue. If you run very low-offset or small-diameter wheels, verify clearance before ordering.
Installation Instructions
- Raise the vehicle and support it on jack stands
- Remove the wheel to access the component
- Remove the factory component being replaced
- Install the new Ridetech component using the included hardware
- Torque all fasteners to the manufacturer’s specification
- Repeat on the opposite side if applicable
- Verify clearance through full suspension travel before driving
