Product Description

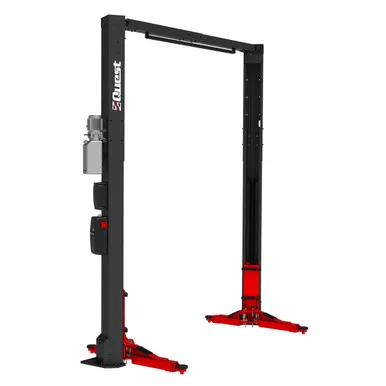

Premium 2-Post Lift with superior column and arm design for all types of vehicles. Xsymmetric configuration is the only 3-Stage Front/Rear allowing for Asymmetric Column design, but with the safety and versatility of a symmetric lift. Double layered columns provide unsurpassed strength and rigidity when servicing all vehicle types within rated capacity.
Columns:
- True Asymmetric design allows for vehicles positioning for better door-opening angle
- Double Layer Welded Columns Provide “Best-in-class” Stability
- Overhead Safety Switch and Optional Limit Switch for Additional Safety
- Overall Height 166.33″
- Carriage with optimized sliding block bearing for low friction
- Double door-stop mounted on carriage
- Electro-Magnetic lock release
- Mechanic synchronization via steel cables
Arms:
- Universal lifting area from small passenger car up to long wheel base with appropriate truck adapters
- Parallel parking of arms for easier and faster positioning of vehicles
- Arms can be opened more than 180° for better drive-in situation for lifts installed in 90° angle to the drive lane
- Low minimum height
