TC100 Coating Thickness Gauge for Car
Features forTC100 Coating Thickness Gauge for Car:
Type: Fe probe (iron base), NF probe (non magnetic base, such as aluminum/copper).
Measuring range: 0~1300um
Accuracy: (3%+2 m
Resolution: 0.1 uM
Calibration: zero point calibration; Multipoint calibration
Company: mmil
Operating environment:
Temperature: 0 to 40 C (32 to 104 F); Humidity: 20%~90% RH; There is no strong magnetic field.
Size: 12 * 5.5 * 3cm/4.72 * 2.17 * 1.18inch
Minimum convex radius of curvature: 1.5 mm/0.06 inch
Minimum concave radius of curvature: 25 mm/0.98 inch
Minimum measuring range diameter: 6 mm/0.24 inch
Minimum base thickness: 0.5 mm/0.02inch, 0.3 mm/0.01inch
Power supply: 9V battery (excluding battery)

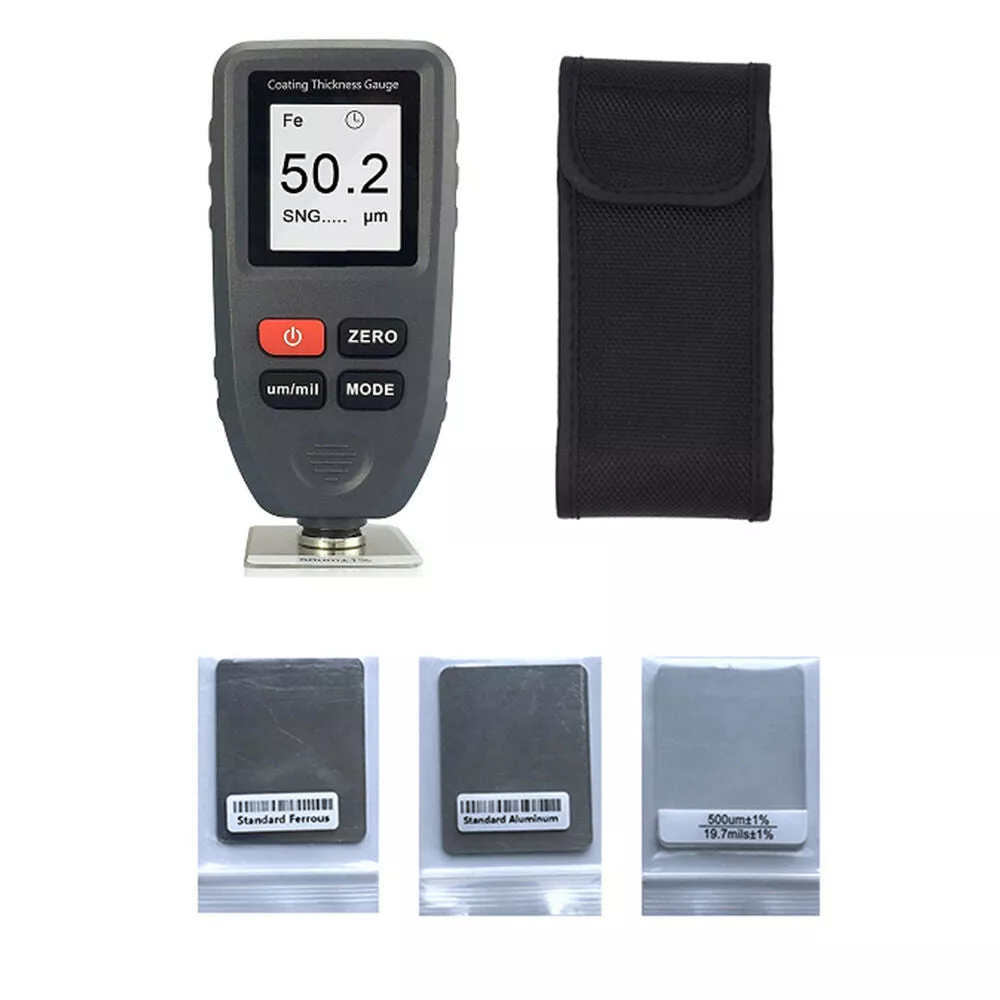

Scope of delivery:
Coating thickness gauge * 1
User manual * 1
Protective cover * 1
Iron base material * 1
Thickness standard * 1
Aluminum substrate * 1
The dimensions are measured manually, and there may be slight deviation.
The color deviation may vary due to different monitor settings.
Packing list:
1 xTC100 Coating Thickness Gauge for Car
