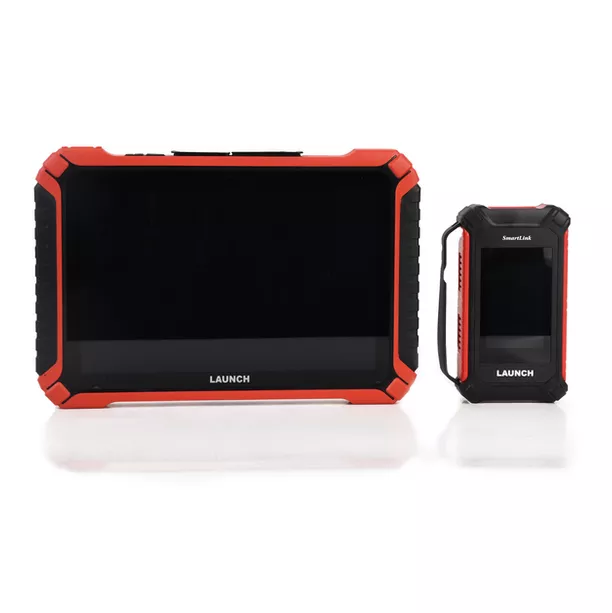

The X-431 Throttle V is Launch Tech’s flagship diagnostic tablet in the X-431 series. It offers fast, intelligent, and wide-ranging vehicle diagnostics in a professional-grade form factor. Built for efficiency, accuracy, and technician mobility, this powerful Android 13-based tool is equipped with a 13.6 2K HD touchscreen, 12GB RAM, 512GB storage, and a 9,360 mAhbattery, making it ideal for high-volume shops and mobile repair professionals.
With OE-level diagnostics, bi-directional controls, and innovative topology mapping.The Throttle V supports various passenger vehicles, commercial trucks, motorcycles, and even new-energy EV systems. Its also designed to expand and is compatible with Launchs full line of optional modules for TPMS, ADAS, battery testing, key programming, and more.
Key Features & Benefits
Fast & Intelligent Diagnostics
SupportsCAN FD, DoIP, FCA SGW Unlock, and Smart VIN recognition.
Run full-system scans, actuation tests, and live data streaming with OE-level detail.
Smart Topology View
Quickly visualize all vehicle systems in a single diagram to speed up diagnosis.
High-Performance Hardware
13.6 2K HD display, Octa-core processor, 12GB RAM, and 512GB ROM.
Designed for fluid multitasking and fast navigation between test functions.
Modular Expansion Support
Compatible with a TPMS gun, ADAS calibration, BST360 battery tester, endoscope, and PROG3 IMMO key programmer.
Remote Diagnostics
Technicians can provide or receive remote support from different locations.
Cloud-Based Support
Access to X-431 FIX, MotorSelect, Identifix and CODEASSIST (subscription-based) for verified DTC repair guides and wiring diagrams.
Comprehensive Vehicle Coverage
Supports diagnostics across passenger cars, commercial trucks, motorcycles, and EV battery packs.
Specifications
| Display |
Throttle V: 13.6 2K (2560 1600) Touchscreen |
| Processor |
2.0GHz Octa-core |
| Operating System |
Android 13 |
| Memory |
Throttle V: 12GB RAM |
| Storage |
512GB ROM |
| Battery |
9,360mAh / 7.6V / 71.1Wh |
| Wi-Fi |
Dual Band (2.4GHz & 5GHz) |
| Protocols Supported |
CAN FD, DoIP, J2534, D-PDU, RP1210 |
| Dimensions |
Throttle V: 14.38 x 9.69 x 1.38 (in) |
Side-by-side Comparison
Configuration |
| Devices | X-431 Throttle V | X-431 Torque Link | X-431 Turbo III |
| Touch Screen | 13.6 – 2560×1600 | 10.1 – 1280×800 | 8 – 1280×800 |
| Processor | 2.0GHz Octa-core | 2.0GHz 4-core | 2.0GHz 4-core |
| Memory | 12GB | 4GB | 4GB |
| Storage | 512GB | 128GB | 64GB |
| Camera | Front 8MP, Rear 20MP | Front 5MP, Rear 8MP | Front 5MP, Rear 8MP |
| Battery | 71.1Wh (7.6, 9360mAh) | 47.88Wh (7.6, 6300mAh) | 47.88Wh (7.6, 6300mAh) |
| VCI Connection | 2.4GHz & 5GHz dual Wi-Fi | Bluetooth | Bluetooth |
| VCI Adapter | Smartlink C | Smarklink C | DBSCARVII |
| Adjustable Kickstand | Yes | Yes | Yes |
| IP65 Waterproof & Dustproof | Yes | No | No |
Features |
| Devices | X-431 Throttle V | X-431 Torque Link | X-431 Turbo III |
| Vehicle Coverage | 1996-Present Passenger cars Medium & Light Duty Vehicles/ Heavy Duty Vehicles (Optional) |
1996-Present Passenger cars Medium & Light Duty Vehicles/ Heavy Duty Vehicles (Optional) |
1996-Present Passenger cars Medium & Light Duty Vehicles |
| Operating System | Android 13.0 | Android 10.0 | Android 10.0 |
| Full System Diagnosis | Yes | Yes | Yes |
| OBD II Full Function | Yes | Yes | Yes |
| Tech 2 Tech Remote Diagnosis | Yes | Yes | Yes |
| Smartlink Remote Diagnosis | Yes | Yes | No |
| Auto VIN | Yes | Yes | Yes |
| Wi-Fi Updatable | Yes | Yes | Yes |
| Secure Gateway Access | Yes | Yes | Yes |
| Code Assist by IDENTIFIX | Yes | Yes | Yes |
| X-431 FIX by Motor | Yes (included) | Yes | Yes |
| VW & AUDI Guided Function | Yes | Yes | Yes |
| CAN FD | Yes | Yes | Yes |
| DoIP | Yes | Yes | Yes* (Adapter needed 105022532) |
Compatible Modules |
| Devices | X-431 Throttle V | X-431 Torque Link | X-431 Turbo III |
| X-431 ADA PRO Plus | Yes | Yes | Yes |
| X-431 ADAS Mobile Plus | Yes | Yes | Yes |
| X-431 ADAS HD | Yes | Yes | No |
| X-PROG 3 Immobilizer | Yes | Yes | Yes |
| BST360 Battery Tester | Yes | Yes | Yes |
| VSP600 Videoscope | Yes | Yes | Yes |
| HD Add-on Module | Yes | Yes | No |
| O2-2 4 Channel Scopebox | Yes | Yes | No |
| S2-2 Sensorbox | Yes | Yes | No |
